EDF Ducted Fan JP Hobby 70mm + 4s Motor 3300Kv (CW)
For Twin EDF Jet - Counter Rotative CW version
Combo 70mm / 12 pales / 3300Kv (outrunner) / 4S / 225g
> 4S (14.8V) : 76A / 1.74kg / 1125W
> 4S (16.8V) : 92A / 2.15kg / 1545W
Combo 70mm / 12 pales / 3300Kv (outrunner) / 4S / 225g
> 4S (14.8V) : 76A / 1.74kg / 1125W
> 4S (16.8V) : 92A / 2.15kg / 1545W

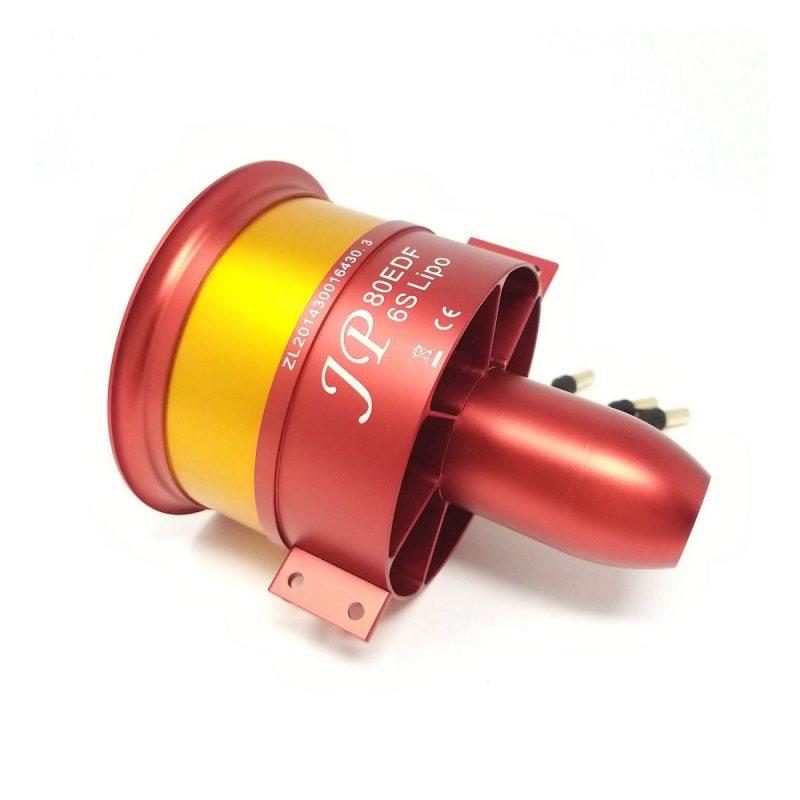

EDF Ducted Fan JP Hobby 80mm + 6s Motor 2200Kv (CW)
Combo 80mm / 12 blades / 2200Kv (outrunner) / 6S / 262g
> 6S (22.2V) : 90A / 2.90kg / 1998W
> 6S (24.0V) : 103A / 3.30kg / 2472W
> 6S (22.2V) : 90A / 2.90kg / 1998W
> 6S (24.0V) : 103A / 3.30kg / 2472W
EDF Ducted Fan JP Hobby 120mm + 10s Motor 840KV (CCW)
Combo 120mm / 12 pales / 840KV (outrunner) / 10S / 710g
> 10S (42.0V) : 96 A / 6.1 kg / 4032 W
> 10S (43.5V) : 118 A / 7.5 kg / 5251 W
> 10S (42.0V) : 96 A / 6.1 kg / 4032 W
> 10S (43.5V) : 118 A / 7.5 kg / 5251 W
EDF Ducted Fan JP Hobby 105mm 12blades + 6S Motor 1400KV (CCW)
Combo 105mm / 12 blade / 1400KV (outrunner) / 6S / 550g
> 6S (22.2V) : 119 A / 4.1 kg / 2464 W
> 6S (24.0V) : 125 A / 4.7 kg / 3000 W
> 6S (22.2V) : 119 A / 4.1 kg / 2464 W
> 6S (24.0V) : 125 A / 4.7 kg / 3000 W
EDF Ducted Fan JP Hobby 80mm + 6s Motor 2200Kv (CCW)
EDF Ducted Fan JP Hobby 80mm + 6s Motor 2200Kv (CCW)
Reference: JPH-8012-6SBrand: JP Hobby
Combo 80mm / 12 blades / 2200Kv (outrunner) / 6S / 262g
> 6S (22.2V) : 90A / 2.90kg / 1998W
> 6S (24.0V) : 103A / 3.30kg / 2472W
Reference: JPH-8012-6SBrand: JP Hobby
Combo 80mm / 12 blades / 2200Kv (outrunner) / 6S / 262g
> 6S (22.2V) : 90A / 2.90kg / 1998W
> 6S (24.0V) : 103A / 3.30kg / 2472W
EDF Ducted Fan JP Hobby 90mm + 6s Motor 1750Kv (CCW)
Combo 90mm / 12 pales / 1750Kv (outrunner) / 6S / 459g
> 6S (22.2V) : 103A / 3.57kg / 2286W
> 6S (24.0V) : 117A / 4.01kg / 2808W
> 6S (25.2V) : 126A / 4.32kg / 3175W
> 6S (22.2V) : 103A / 3.57kg / 2286W
> 6S (24.0V) : 117A / 4.01kg / 2808W
> 6S (25.2V) : 126A / 4.32kg / 3175W

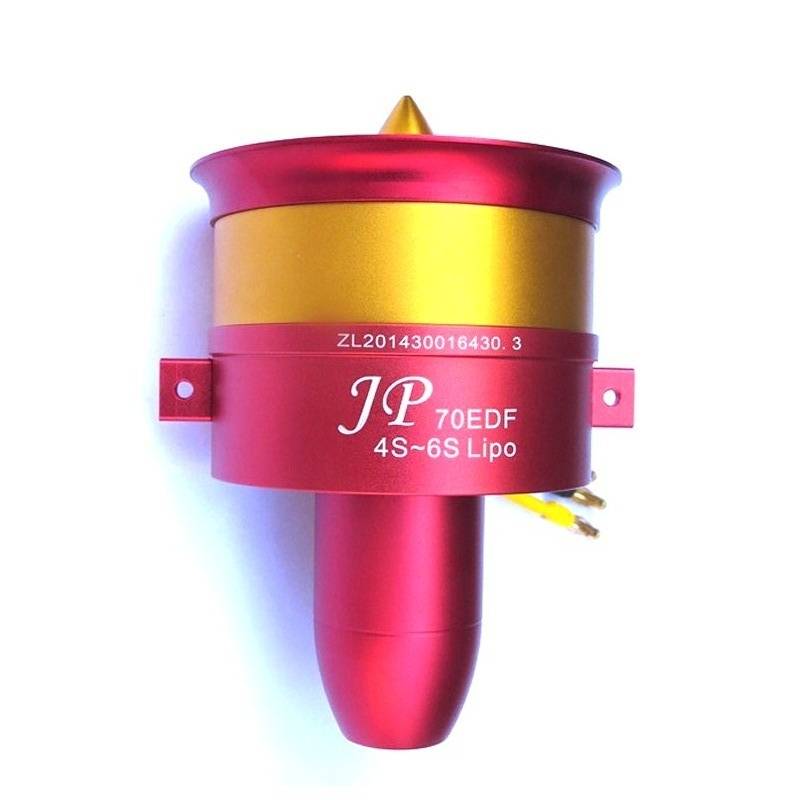

EDF Ducted Fan JP Hobby 70mm + 4-6s Motor 2250Kv (CCW)
Combo 70mm / 12 blades / 2250Kv (outrunner) / 4-7S / 225g
> 6S (22.2V) / 76.6A / 2.35kg / 1700W
> 6S (24.0V) / 88.2A / 2.76kg / 2117W
> 7S (25.2V) : 95.0A / 2.91kg / 2394W (7s possible)
> 6S (22.2V) / 76.6A / 2.35kg / 1700W
> 6S (24.0V) / 88.2A / 2.76kg / 2117W
> 7S (25.2V) : 95.0A / 2.91kg / 2394W (7s possible)
EDF Ducted Fan JP Hobby 70mm + 4-6s Motor 2250Kv (CW)
For Twin EDF Jet - Counter Rotative CW version
Combo 70mm / 12 blades / 2250Kv (outrunner) / 4-7S / 225g
> 6S (22.2V) / 76.6A / 2.35kg / 1700W
> 6S (24.0V) / 88.2A / 2.76kg / 2117W
> 7S (25.2V) : 95.0A / 2.91kg / 2394W (7s possible)
Combo 70mm / 12 blades / 2250Kv (outrunner) / 4-7S / 225g
> 6S (22.2V) / 76.6A / 2.35kg / 1700W
> 6S (24.0V) / 88.2A / 2.76kg / 2117W
> 7S (25.2V) : 95.0A / 2.91kg / 2394W (7s possible)
EDF Ducted Fan JP Hobby 70mm + 4s Motor 3300Kv (CCW)
Combo 70mm / 12 pales / 3300Kv (outrunner) / 4S / 225g
> 4S (14.8V) : 76A / 1.74kg / 1125W
> 4S (16.8V) : 92A / 2.15kg / 1545W
> 4S (14.8V) : 76A / 1.74kg / 1125W
> 4S (16.8V) : 92A / 2.15kg / 1545W
